Geemarc Amplicall PSA200 Pressure Sensor Mat and Alarm for Wheelchairs
Code: 40TCALLPSA200
Quantity Pricing
VAT Relief is available if you make a declaration in the Shopping Basket
-
VAT
Choose quantity
Order now for dispatch on Mon 2nd Feb.
Description

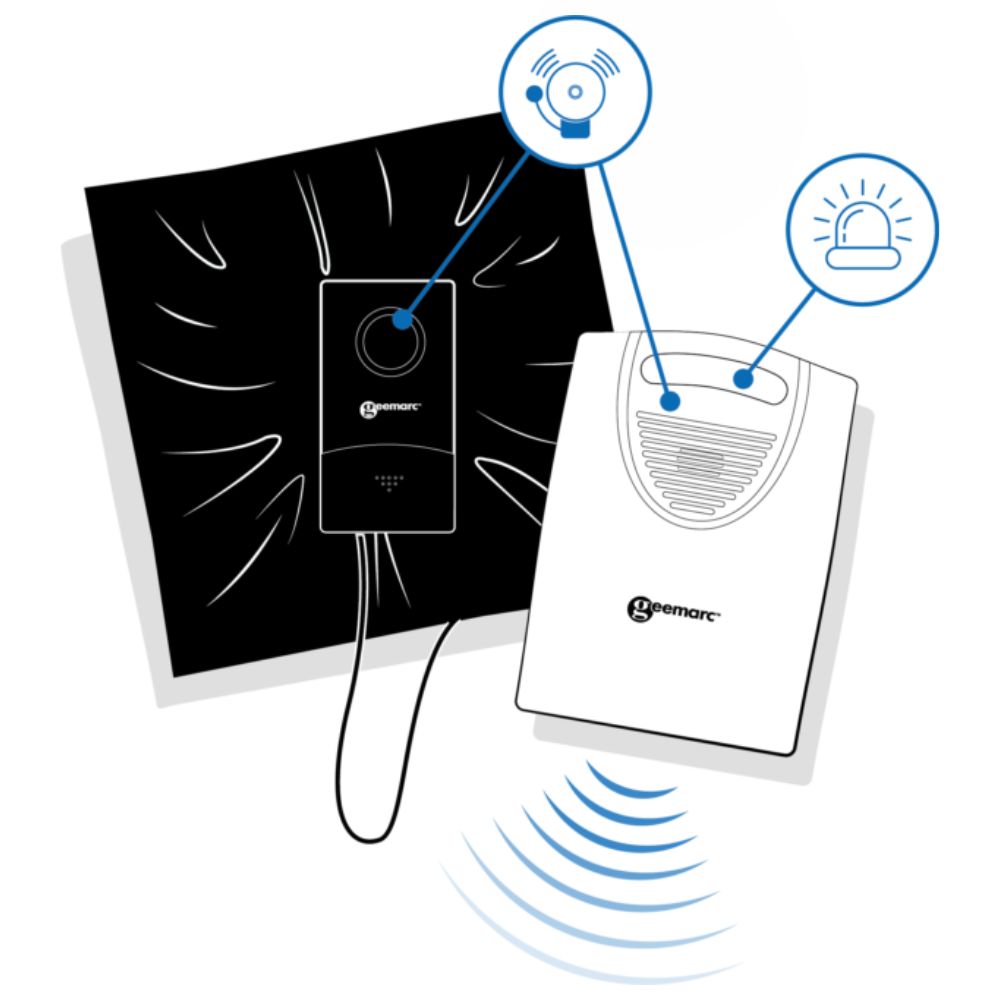

The Amplicall PSA200 consists of a battery powered pressure
sensor mat connected to a signal transmitter, and a wireless signal
receiver. As soon as pressure stops being applied to the sensor
mat, the transmitter it is connected to will send a signal to the
wireless receiver which will immediately start ringing and
flashing. The receiver’s alarm volume can be set to high or low.
The distance between the transmitter and the receiver should not
exceed 30 metres. The pressure sensor mat, which is powered by a 9V
battery (not included) was designed to be placed on a wheelchair
seat or mattress of a person with reduced mobility.
- The cushion equipped with sensors can detect when a person is no longer in a sitting position and activate an alarm
- The sensor cushion can be placed on all types of chairs
- The receiver rings and flashes, and has two types of alarm
- Adjustable ringer volume on the receiver: 85dB (HI) or 70dB (LO)
- Power switch on receiver with 3 positions:
ALARM: flashes and rings for 30 seconds every 10 seconds
OFF: device is switched off
CHIME: flashes and rings for 5 seconds every 30 seconds - Visual ring indicator: flash
- 3 X 1.5V LR14 type batteries for receiver (not included - see associated items)
- 1X9V PP3 type battery for transmitter (not included - see associated items)
Contents:

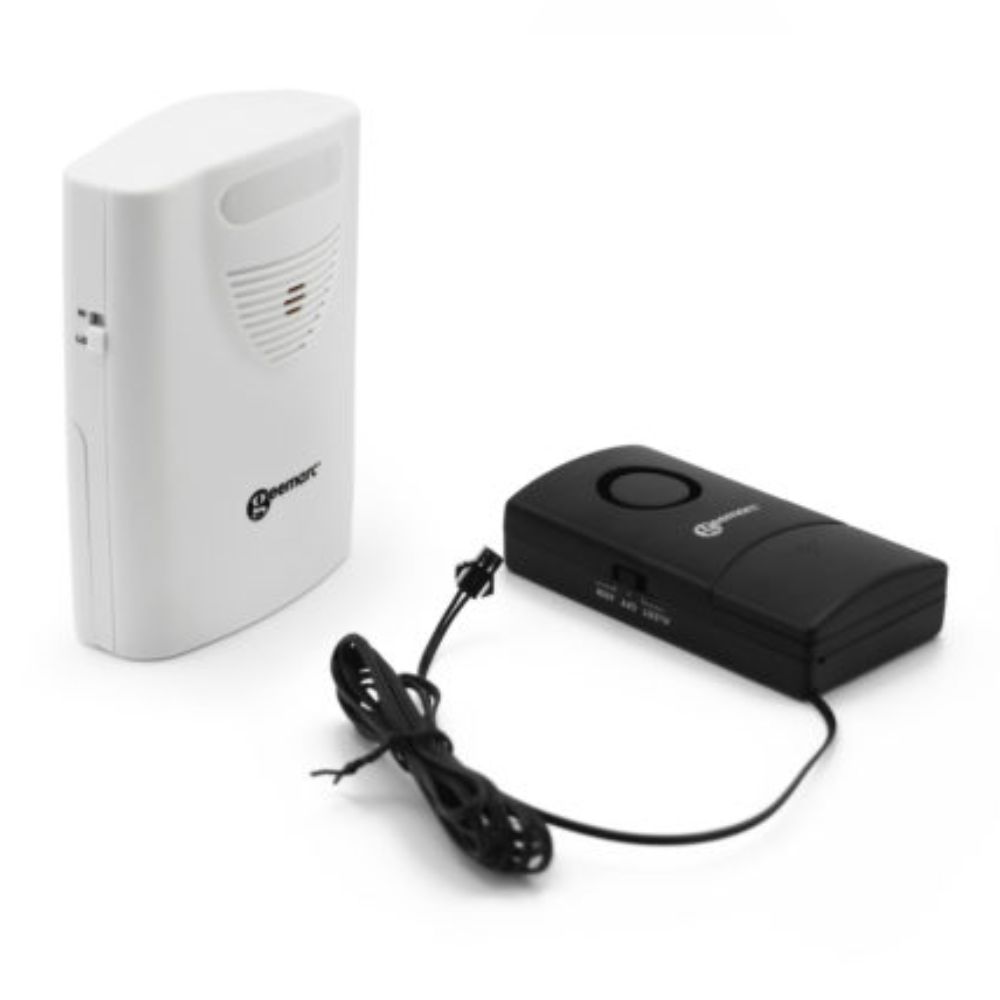

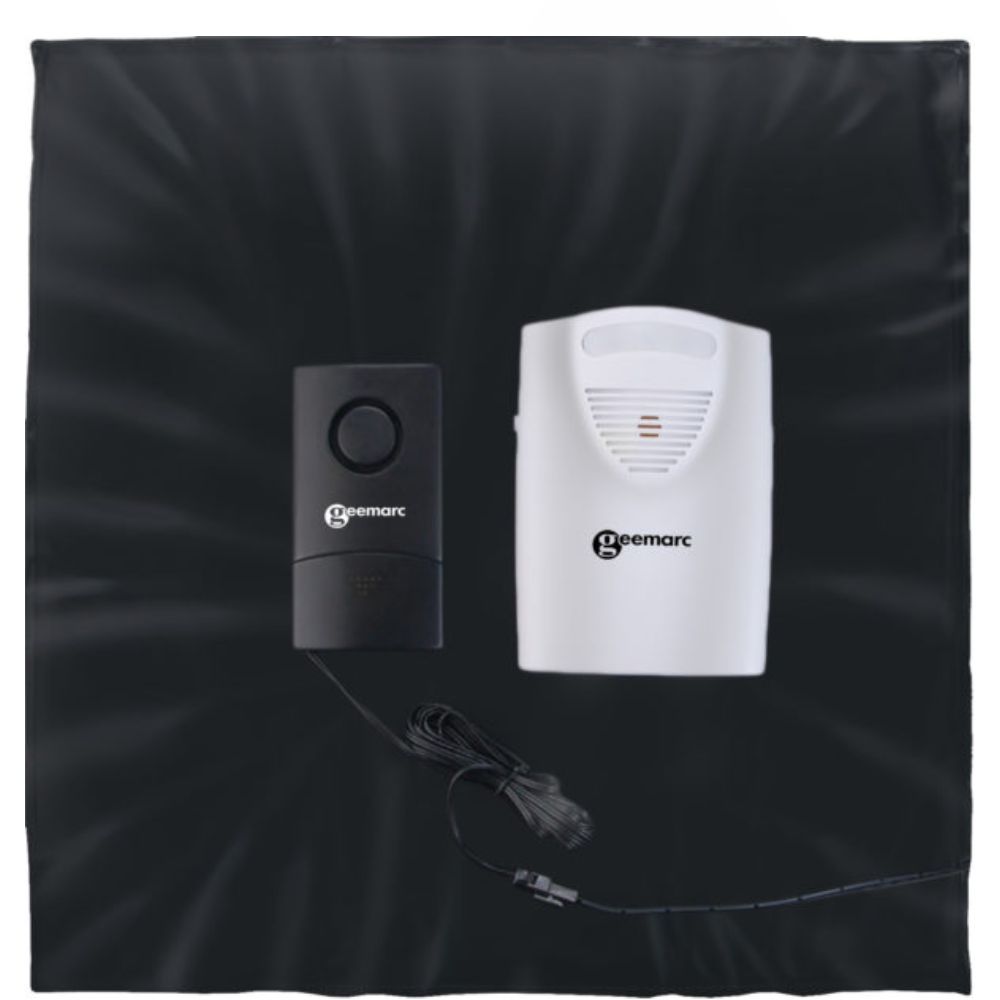

1 x Amplicall PSA 200 Pressure Sensor Mat and it's transmitter,
1 wireless receiver, user guide
Details

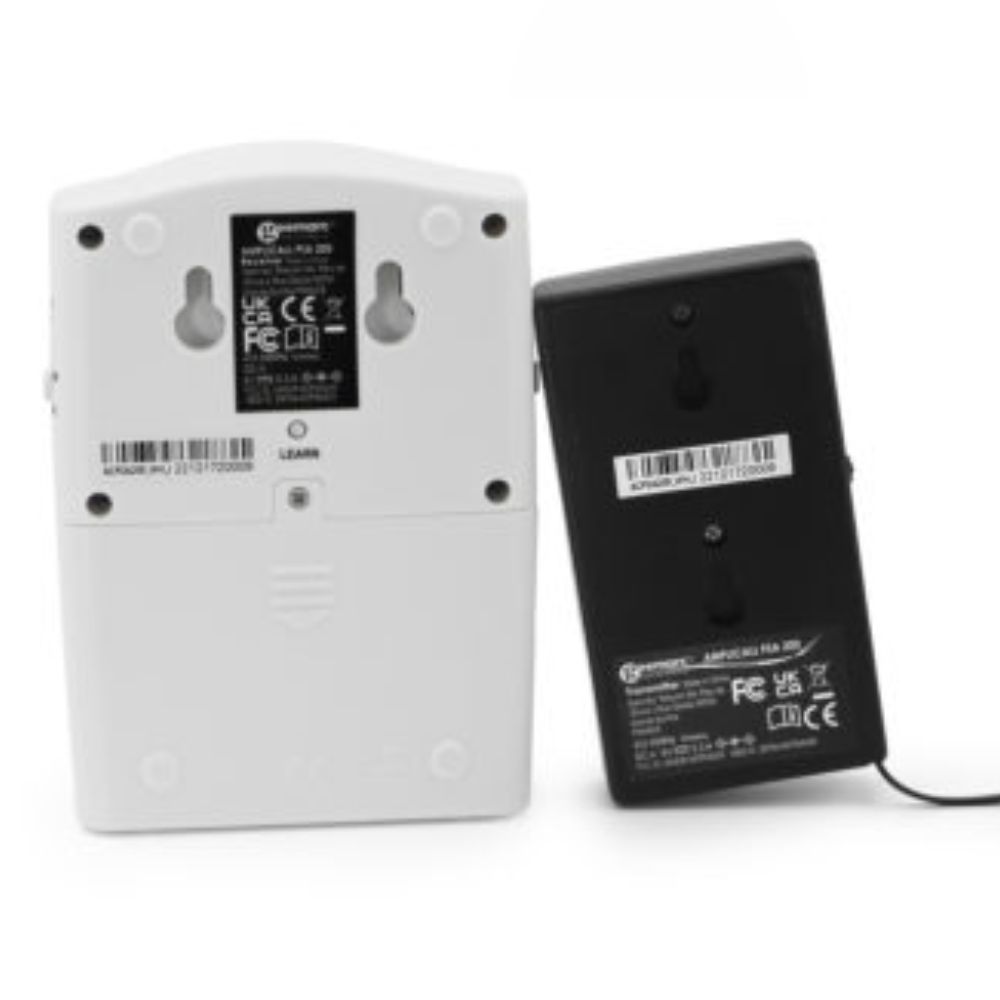

Receiver
- Adjustable ringer volume: 85dB (HI) or 70dB (LO)
- Visual ring indicator: flash

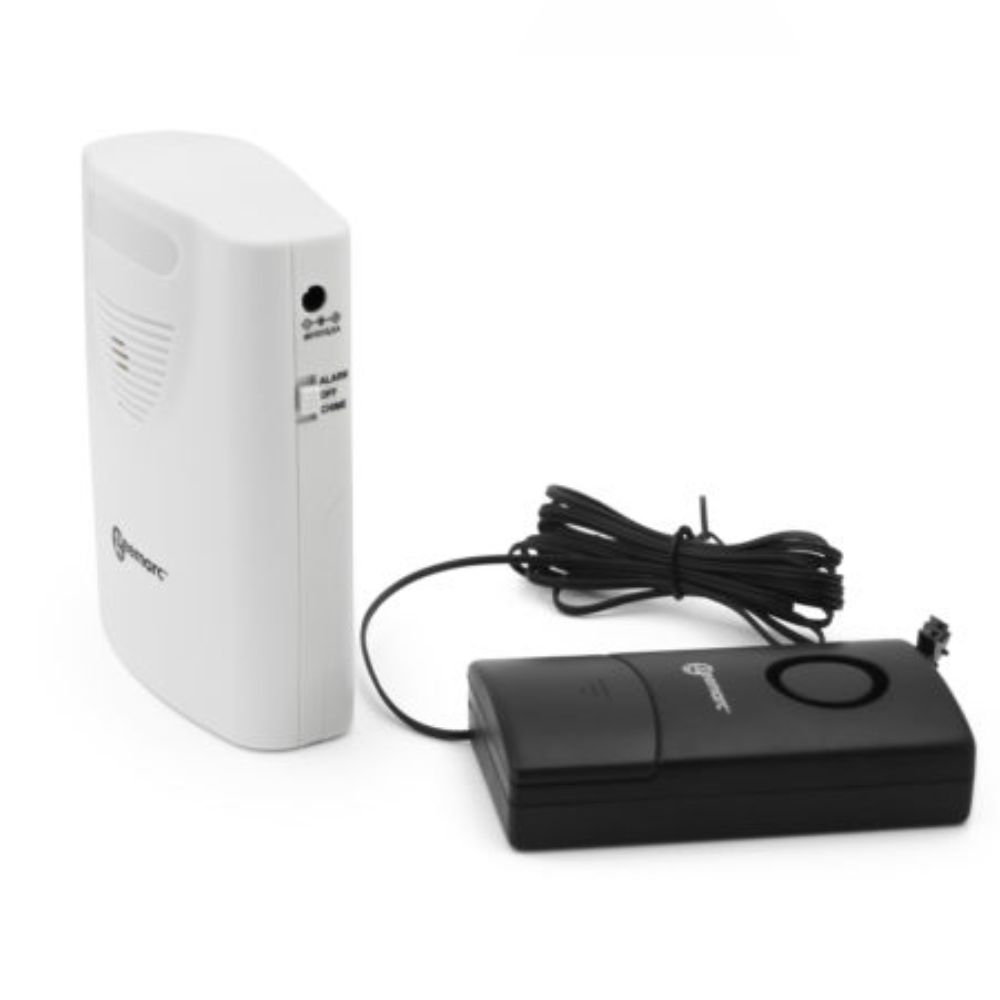

- Power switch with 3 positions:
o ALARM: flashes and rings for 30 seconds every 10 seconds
o OFF: device is switched off
o CHIME: flashes and rings for 5 seconds every 30 seconds - Low battery alert signal
- Distance between receiver and transmitter: 30 meters maximum
- Size of the receiver: 89 x 126 mm
- Weight of the receiver: 122g
- 3 x 1.5V LR14 type batteries (not included)
- DC adaptor socket (6V DC/0.3A)
Transmitter
- Ringer volume: 75 dB
- Power switch with 3 positions:
o ALERT: only the receiver gets activated when pressure is no longer applied on the mat. It rings and flashes according to the chosen setting (ALARM / CHIME / OFF)
o OFF: device is switched off
o ARM: the transmitter rings for 5 seconds every 40 seconds to make locating it easier. The receiver rings and flashes according to the chosen setting (ALARM / CHIME / OFF) - Frequency: 433,92MHz
- Radio frequency power: < 250 mW
- Size of the transmitter: 120mm x 50mm
- Weight of the transmitter: 67g
- 1 x 9V PP3 type battery (not included)
Mat
- The sensor cushion can be placed on all types of chairs.
- Size of the mat: 36 x 36 cm
- Weight of the mat: 106g
- Material: PVC plastic
