Geemarc Amplicall PSA100 Pressure Sensor Mat and Alerter triggered when pressure is applied
Code: 40TCALLPSA100
Quantity Pricing
VAT Relief is available if you make a declaration in the Shopping Basket
-
VAT
Choose quantity
Please allow 3 or 4 working days for dispatch of this product
Description

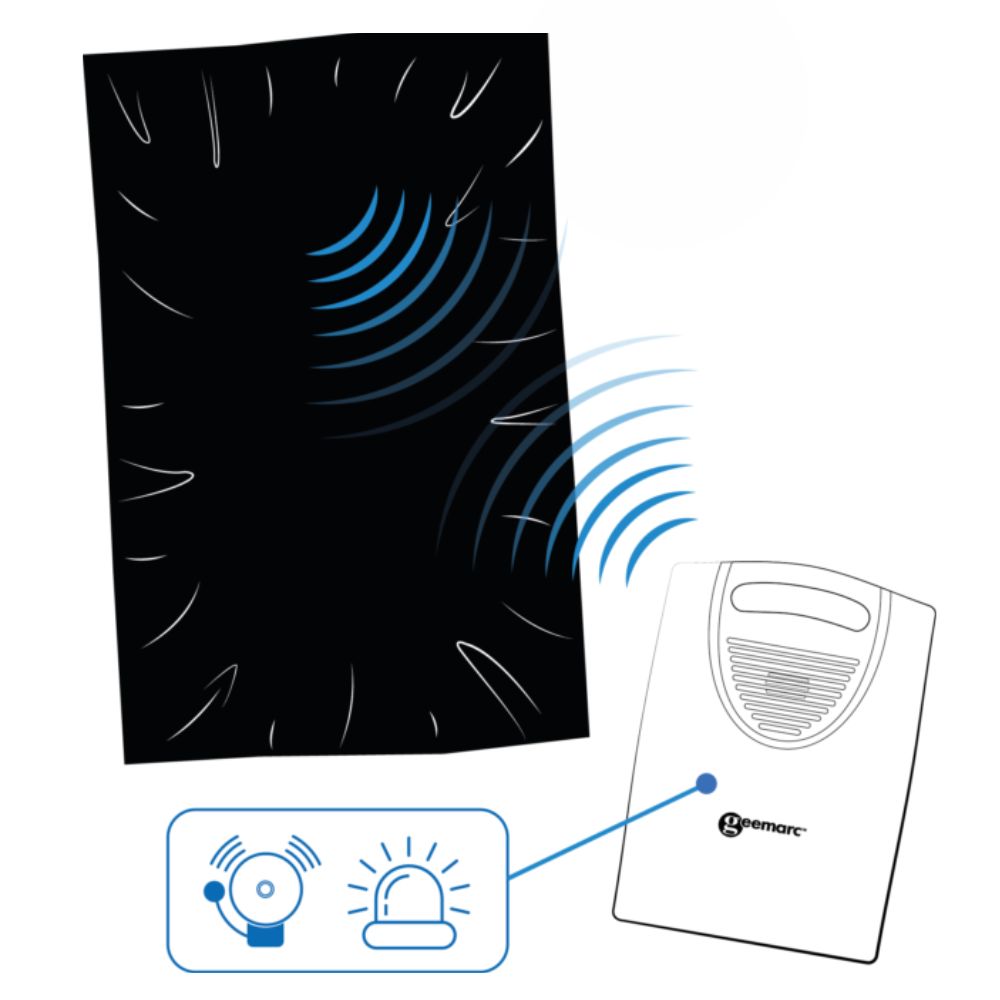

The Amplicall PSA 100 is an easy-to-use device made up of a
pressure sensor mat connected to a signal transmitter, and a
wireless signal receiver. As soon as pressure is being applied to
the sensor mat, the transmitter it is connected to will send a
signal to the wireless receiver which will immediately start
ringing and flashing. The receiver’s alarm volume can be set to

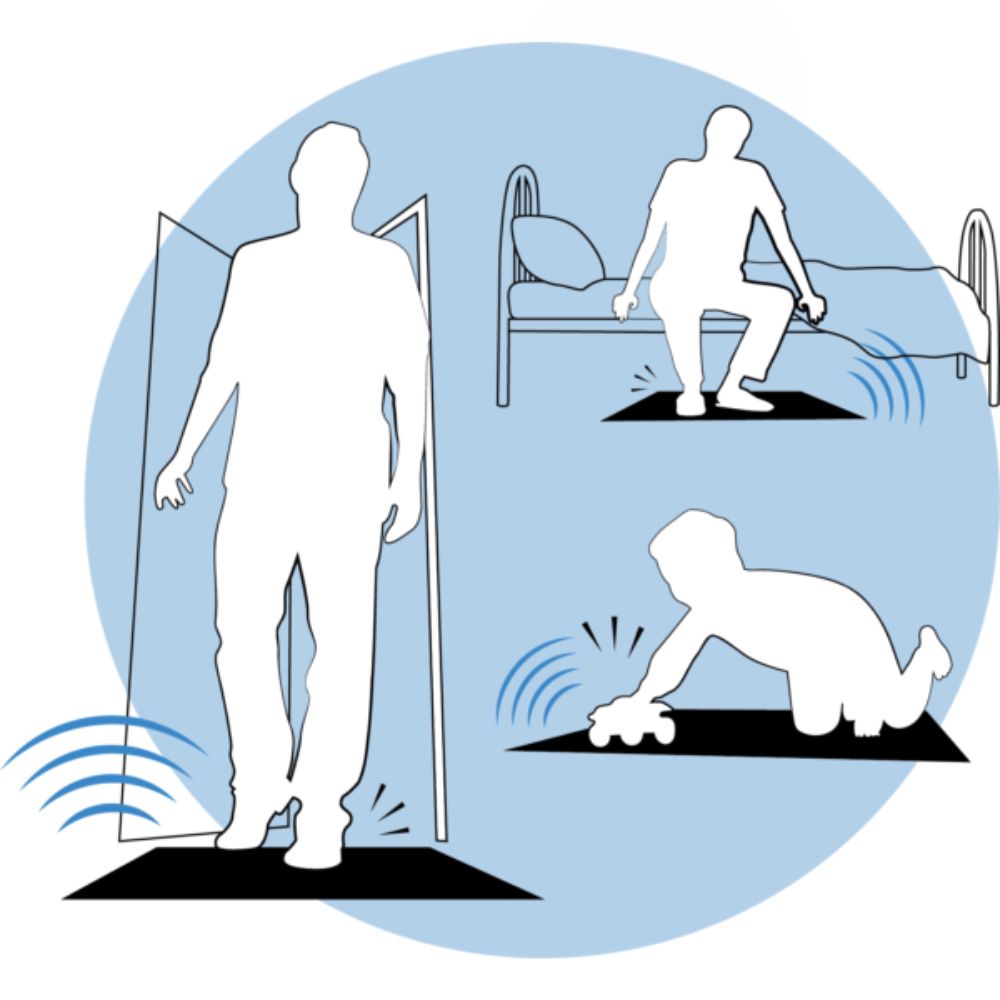

high or low. The pressure sensor mat can be placed in front of an
entrance door or in a corridor so that one can immediately be made
aware of any movement in the area.
- When the mat, which is equipped with sensors and a signal
transmitter, detects that pressure is being applied, it sends
asignal to the receiver that then starts ringing and flashing
- Adjustable ringer volume: 85dB (HI) or 70dB (LO)
- Power switch with 3 positions:
ALARM: flashes and rings for 30 seconds every 10 seconds
OFF: device is switched off
CHIME: flashes and rings for 5 seconds every 30 seconds - Visual ring indicator: flash
- 3 X 1.5V LR14 type batteries for receiver (not included - see associated items)
- 1XCR2032 type battery for transmitter (not included - see associated items)
Contents:
1 x Amplicall PSA 100 Pressure Sensor Mat and it's transmitter,
1 wireless receiver, user guide
Details

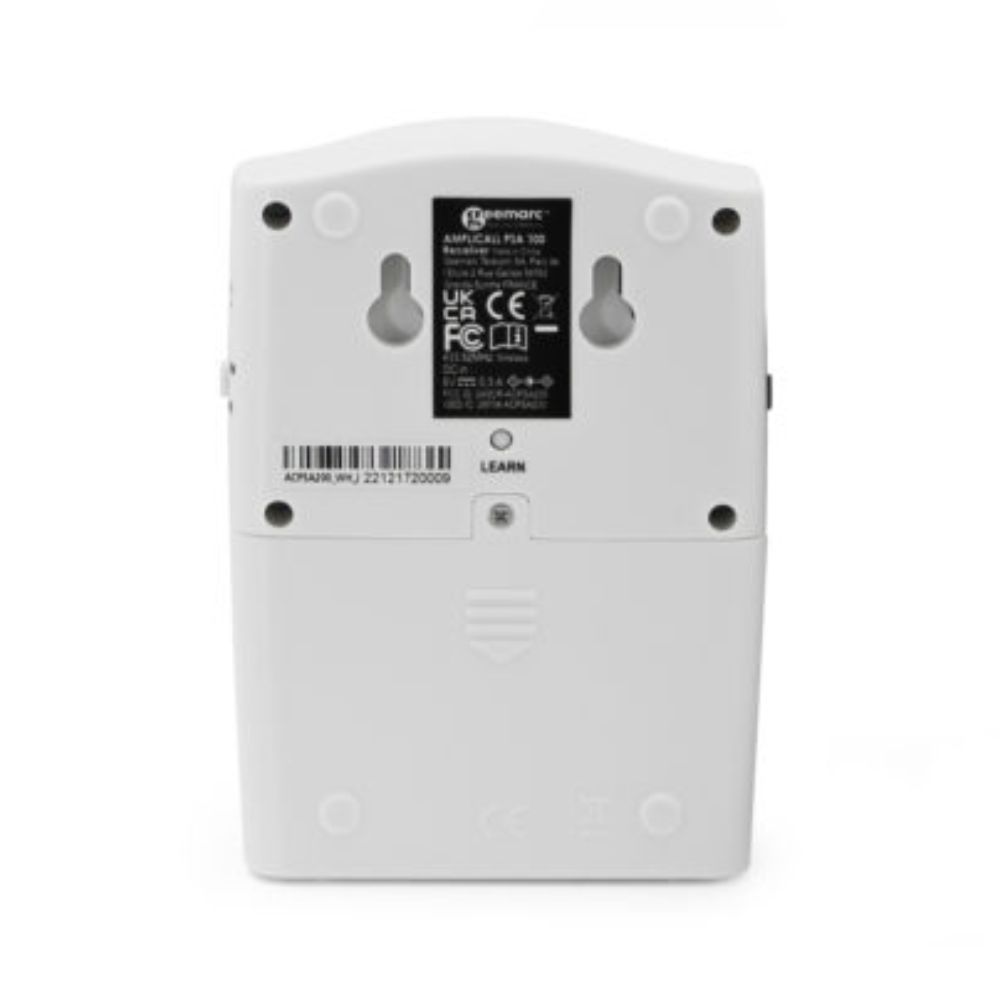

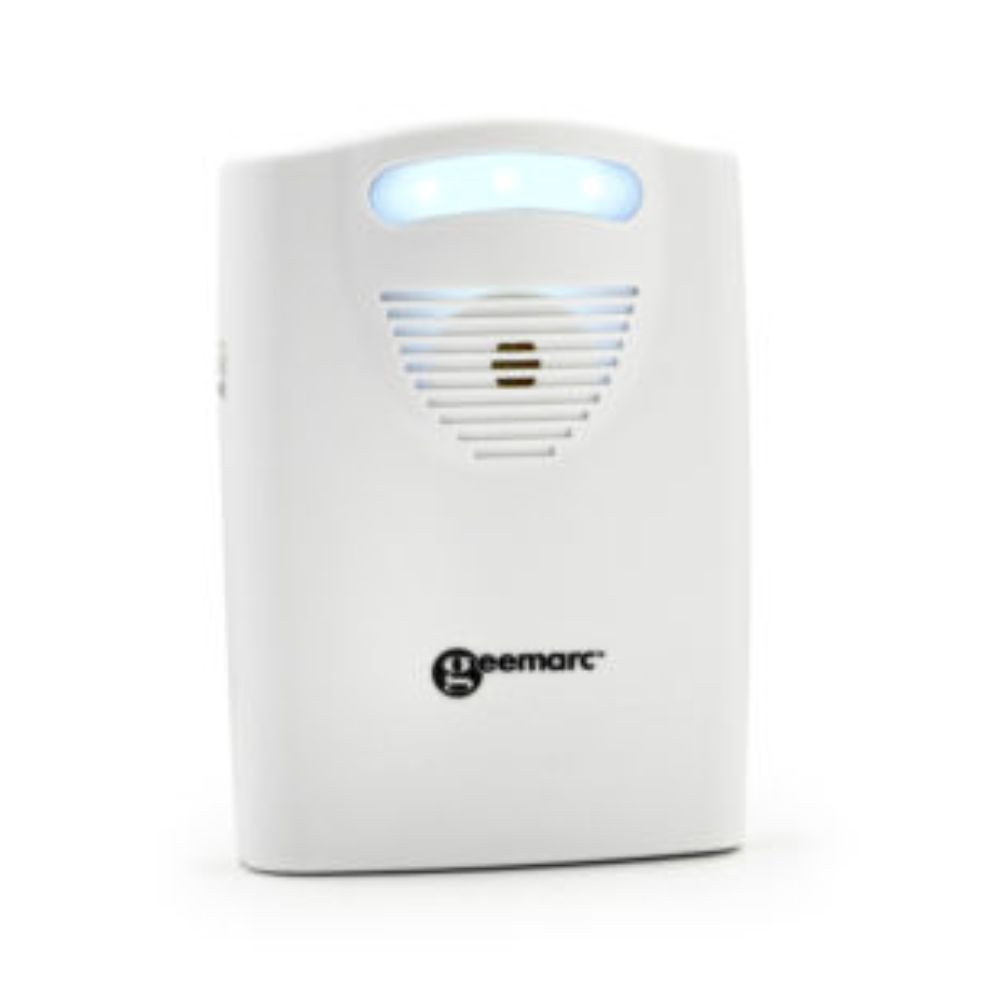

Receiver
- Adjustable ringer volume: 85dB (HI) or 70dB (LO)
- Visual ring indicator: flash

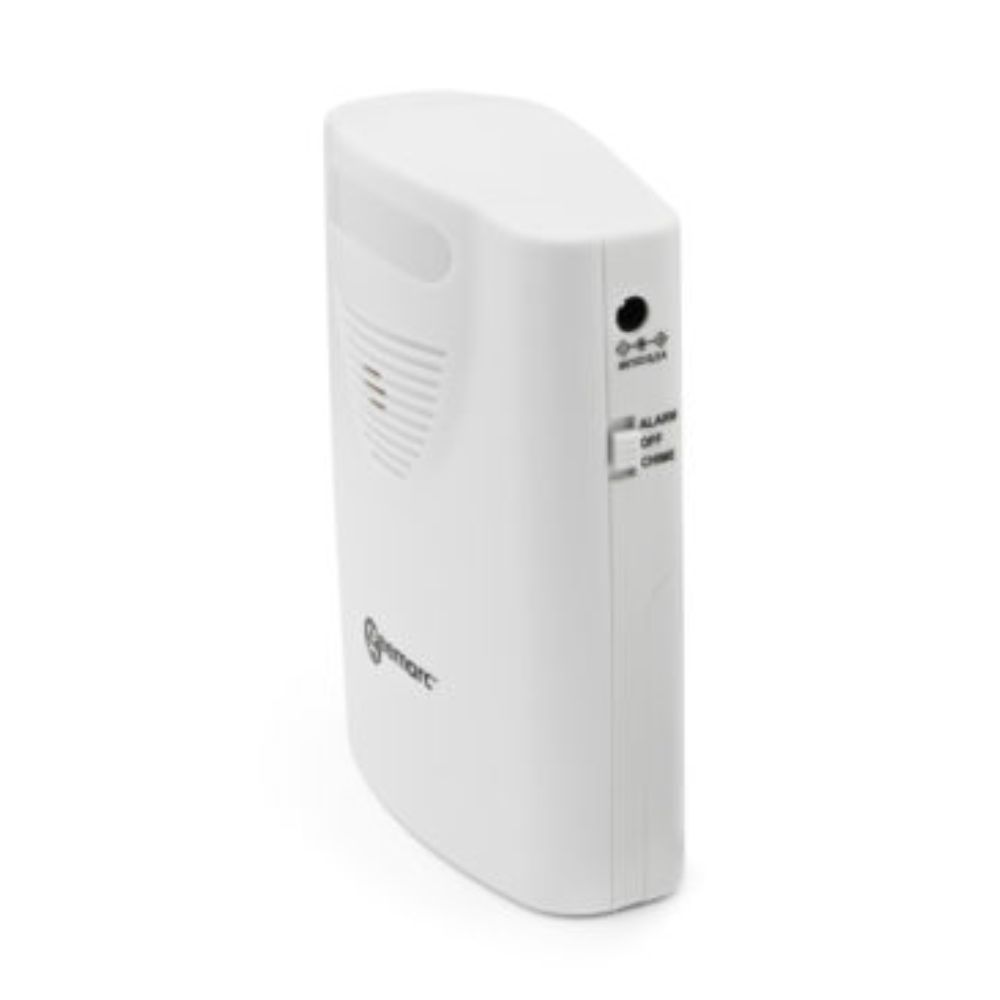

- Power switch with 3 positions:
ALARM: flashes and rings for 30 seconds every 10 seconds
OFF: device is switched off
CHIME: flashes and rings for 5 seconds every 30 seconds - Low battery alert signal
- Distance between receiver and transmitter: maximum 30 meters
- Size of the receiver: 89 x 126 mm
- Weight of the receiver: 122g
- 3 X 1.5V LR14 type batteries (not included)
- DC adaptor socket (6V DC/0.3A)
Transmitter
- Frequency: 433,92MHz
- Radio frequency power: < 250 mW
- Size of the transmitter: 65 x 34 mm
- Weight of the transmitter: 13g
- 1XCR2032 type battery (not included)
- Autonomy: about 10 months (assuming pressure is applied on it 30 times every day on average)
Mat
- Size of the mat: 36 x 56 cm
- Weight of the mat: 167g
- Material: PVC plastic
