Phonak Roger DigiMaster 5000V2 loudspeaker inc. wall mount.

Please note - this is the 5000V2 loudspeaker only, no transmitter is included with this item. I deal for schools who already use Phonak Roger transmitters.

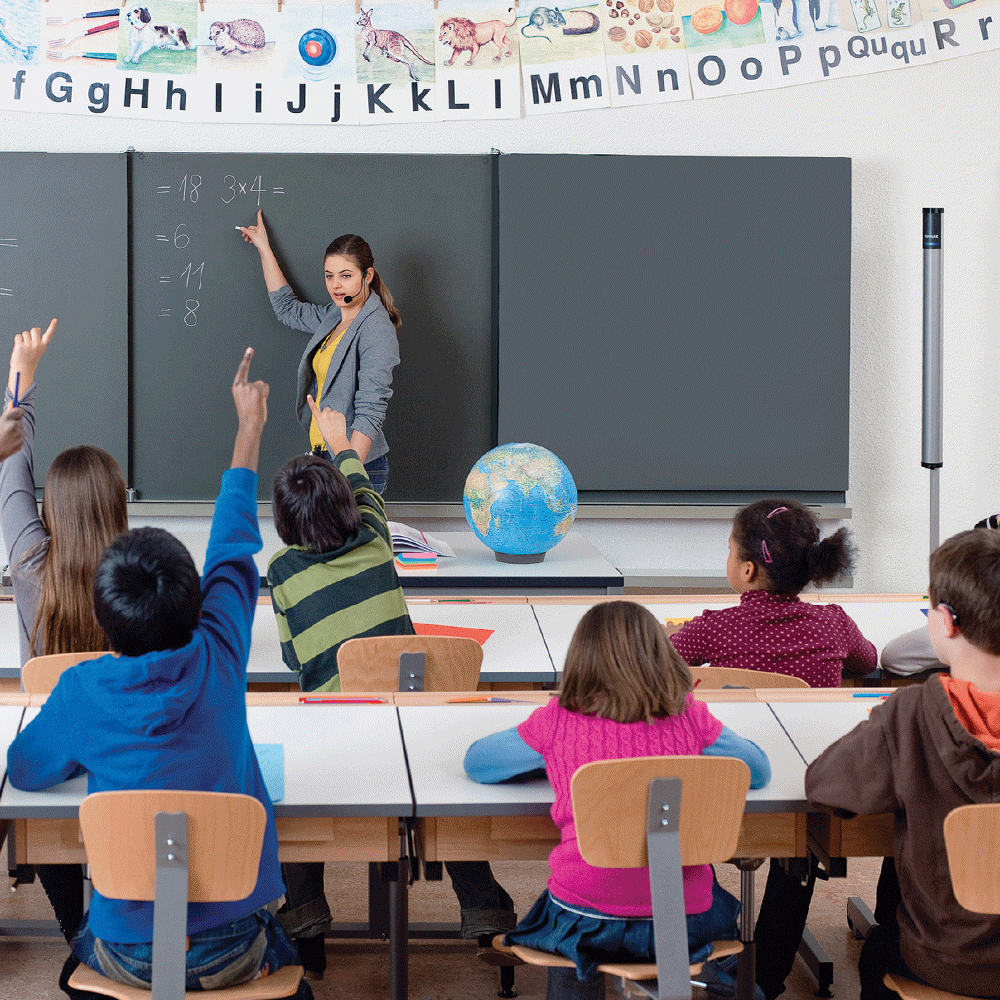

Phonak’s innovative Digimaster loudspeaker array is called the DigiMaster 5000 V2. This features no less than 12 individual high-quality loudspeakers, all housed in a robust aluminium frame.

The ratio between the teacher’s speech signal and any undesired background noise (the Signal to Noise Ratio, or SNR) is much more favourable using this kind of loudspeaker design. This is especially true when children are sat further away from the teacher, where they need high sound quality the most.

The DigiMaster 5000V2 array emits cylindrical sound waves at the most important speech frequencies, ensuring that the required sounds are carried effectively across a large area, while generating very little speech-hindering ‘late reverberation’ or echo. The DigiMaster 5000 V2 is supplied with a wall mount with the option to purchase a floor or table stand.

System Features:

• Exclusive built-in Roger radio aid compatibility for children using hearing instruments
• Bluetooth audio input for use with laptops etc.
• 3.5mm external audio input
• 3.5mm system audio output for recording, speech to text or rebroadcasting
• Virtually installation-free - Designed for use in classrooms up to 100m ²
• Unique ‘line-source’ loudspeaker unit for crystal clear sound
• 12 high-quality loudspeakers per loudspeaker unit
• Dynamic Speech Extractor - intelligent voice activation detection which mutes the receiver when the teacher stops speaking
• Monitoring & Data-logging functions
• Multicolour LED status indicator provides immediate feedback to the teacher
• Only one loudspeaker per classroom with unlimited number of Roger SoundField systems per school
• Automatic frequency hopping for interference-free sound
• Automated Dynamic behaviour for optimal signal-to-noise ratios (SNRs)
• Wall-mountable
• Floor and table stand options available
• USB C for updating with new features
• MultiTalker Network with Roger Touchscreen Mic and Roger PassAround Mic

Includes: Speaker unit: 1 x DigiMaster 5000V2 loudspeaker unit, 1 x wall mount & fixings, 1 x power adaptor & 1 x UK power cable & user instructions.

Phonak part No. 056-4007

Please note: as per Phonak's standard terms of sale, the Digimaster 5000V2 is a non-creditable item. It is supplied with a 2 year manufacturer's warranty, however it must be returned for repair in it's original packaging - so please don't throw it away!  (spare packaging is available for purchase - please contact Customer Services)


Digimaster 5000 V2 Technical data

The Roger DigiMaster 5000V2 SoundField receiver Operates with Roger microphones

Dimension (LxW): 885 x 72 mm/35 x 2.8"

Weight: 2070 g/4.5 lbs

Operating conditions: 0° to +40° C/+32° to +104° F. Relative humidity of <90% (non-condensing)

Power supply Voltage input: 100 - 240 V

Voltage output: 19 V DC/3.42 A/65 W

Power consumption in standby mode: <1 W

Power consumption in off mode: < 0.5 W

Transport and storage conditions: -20° to +60° Celsius (-4° to +140° Fahrenheit). Relative humidity of 90% for a long period of time.

DigiMaster 5000 V2 characteristics

Room size: up 100 m2 /1076ft2

Number of DigiMaster 5000 per system: 1

Number of DigiMaster 5000 per building: unlimited

DigiMaster 5000 compatible Roger microphones: All Roger for Education microphones ie Touchscreen, PassAround Microphone, MultiMedia Hub & Roger Repeater

Roger characteristics

Transmission technology: 2.4 GHz including adaptive automatic frequency hopping

Power emission: 100 mW

Operating range: 25 m/82 ft

Audio characteristics

Audio bandwidth for speech: 200 Hz - 7.5 kHz

Volume control for voice: ± 8 dB

Power output: Up to 80 W

Loudspeaker array: 12 mini-loudspeakers

Vertical aperture angle of the main lobe @500Hz: ± 25°

Vertical aperture angle of the main lobe @2kHz: ± 25°

Auxiliary input: 3.5 mm jack

Audio bandwidth for auxiliary audio input: 100 Hz - 20 kHz

Volume control for auxiliary audio input: ± 10 dB

Auxiliary output: 3.5 mm jack line output

Audio bandwidth for Bluetooth: 100 Hz - 20 kHz

Bluetooth information

Standard: Bluetooth v4.2

Start of dynamic adaptation Level: > 58 dB SPL

Maximum peak output level over auxiliary audio input: 100dB SPL @ 1m

Standards

EMC EN 301.489-1, -3, -9, -17

Power consumption complies with Ecodesign Directive 2005/32/EC

Europe, Canada, Japan, USA  EC no 1275/2008, EN 62301,EN 300 328, EN 301 489, EN 62368-1, IEC/EN 62311, RSS-247, RSS-102, ARIB-T66, CFR 47, part 15.247

Optional Accessories Available

Floor Stand: Tube height: 1035 mm/41", foot print diameter: 750 mm/29", weight: 2.2 kg/4.8 lbs, height on floor stand: 1720 mm/68"

Wall Mount Kit: 1x connecting part to DigiMaster loudspeaker, 1x wall support, screws

Tripod: To be used only in the lowest position in kindergarten. Tube height: 280 mm/11", weight: 2 kg/4.4 lbs , height on tripod stand: 1510 mm/59"

Desk Stand: Tube height: 280 mm/11", weight: 0.6 kg/1.3 lbs, height on desk stand: 1150 mm/45"

DigiMaster 5000 datasheet

Follow this link for the Roger Touchscreen Mic datasheet

Dynamic SoundField DigiMaster 5000/7000 Installation Guide

Phonak Roger in Education

International warranty for Phonak equipment purchased for use outside of the UK.

Phonak offers a one-year limited international warranty, valid as of the date of purchase. This limited warranty covers manufacturing and material defects. The warranty only comes into force if proof of purchase is shown.

For customers using Phonak equipment outside the UK, in the unlikely event that your equipment requires repair it may be returned directly to your local Phonak service centre.
