The Bellman Visit Access to Work Retail Shop Counter wireless alerting bundle is a great solution for members of staff who are deaf or hard of hearing and work in a retail shop setting.

This includes a telephone transmitter (for use with the included pressure contact mat), push button transmitter and pager receiver.

When the telephone transmitter is activated by pressure on the contact mat, it signals the Visit pager receiver which then notifies you via vibrations and lights. The pager receiver will also be activated when someone presses the push button transmitter.

The Bellman Visit range is ideal for anyone who is deaf or hard of hearing as it provides alerts via lights, sounds and vibrations, so you can immediately be notified whenever something happens that needs your attention in and around your home or workplace.

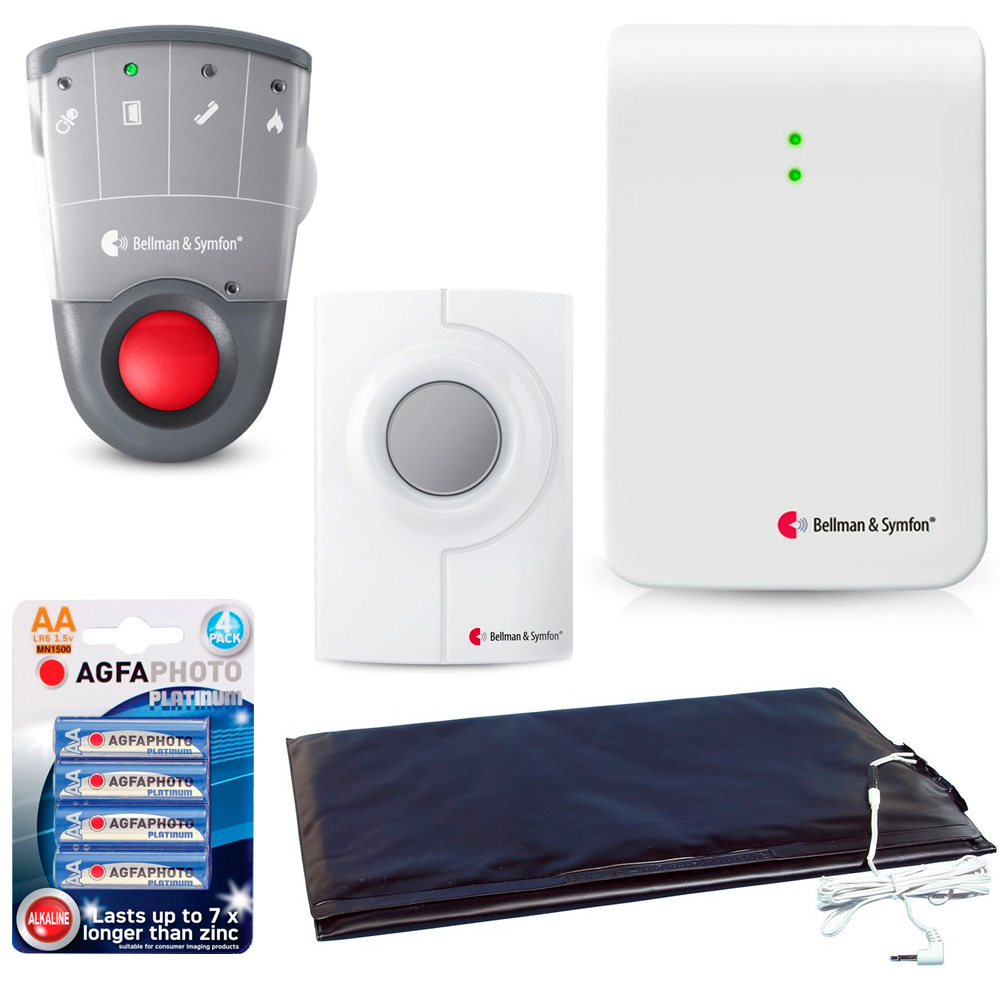

Inside the box:

BE1470 Visit Pager, Belt Clip, Safety Cord, Extra Front Label, User Manual

BE1431 Visit telephone transmitter , 2 x AA alkaline batteries, velcro for wall mounting, telephone cord and adaptor, screw and wall plug

BE1420 Visit push button transmitter , PX28A alkaline batteries, lanyard with safety clasp, screw and plug, double-sided adhesive tape, user manual.

BE9026 pressure pad/contact mat

GP Super AAA alkaline batteries - pack of 4

Pager Receiver
Visit indicators:

• Orange LED, pacifier/dummy symbol: The baby monitor is activated
• Green LED, door symbol: The door transmitter is activated
• Yellow LED, telephone symbol: The telephone transmitter is activated

• Red LED, fire symbol: The smoke alarm is activated

Features:

• Clear signal identification: Coloured LEDs and individual sound signatures

• Discreet alerts: Produces silent and non-intrusive vibrations
• Lightweight and portable: Weighs only 70g
• Optional BE1260 charger accessory: Equipped with two bed shaker sockets (sold separately)


Frequency and coverage:

• Radio frequency: 868.3 MHz
• Coverage: 50 – 250 metres depending on the radio frequency and building’s characteristics

Power and battery:

• Mains power - can be powered via the BE1260 Charger (sold separately)

• Battery Power 1 x AAA alkaline (or rechargeable) battery
• Power consumption: Active: 220 mA, idle position: 1 mA
• Operating time: 2-3 weeks with an alkaline battery or 1 week with NiMH battery (fully charged)



Telephone Transmitter

Inputs/outputs:

• RJ11 input to analogue telephone network

• External microphone input
• External trigger input


How is it activated?:

• The test buttons and the internal microphone

• A smartphone/tablet via the mobile phone sensor (sold separately)

• Contact mat BE9024

• The existing doorbell connected to the external trigger

Frequency and coverage:

• Radio frequency: 868.3 MHz
• Coverage: 50 – 250metres depending on the radio frequency and building’s characteristics

Power and battery:

• Supply - Battery power 2 x AA lithium or alkaline

• Power consumption: Active: <70 mA, idle position: 15 mA
• Operating time: 5 year with alkaline AA batteries, 10 years with lithium AA batteries

Push Button Transmitter

Frequency and coverage:

• Radio frequency: 868.3 MHz
• Coverage: 50 – 250metres depending on the radio frequency and building’s characteristics

Power and battery:

• Supply - Battery power 6V PX28A alkaline or PX28L Lithium

• Power consumption: Active: 35 mA, idle position: 0.05 mA
• Operating time: 2 years

Click here to view pdf user guide for the Pager Receiver

Click here to view pdf data sheet for the Pager Receiver

Click here to view pdf user guide for the Telephone Transmitter

Click here to view pdf data sheet for the Telephone Transmitter

Click here to view pdf user guide for the Push Button Transmitter

Click here to view pdf data sheet for the Push Button Transmitter

Click here to view pdf user guide for the Pressure Contact Mat
