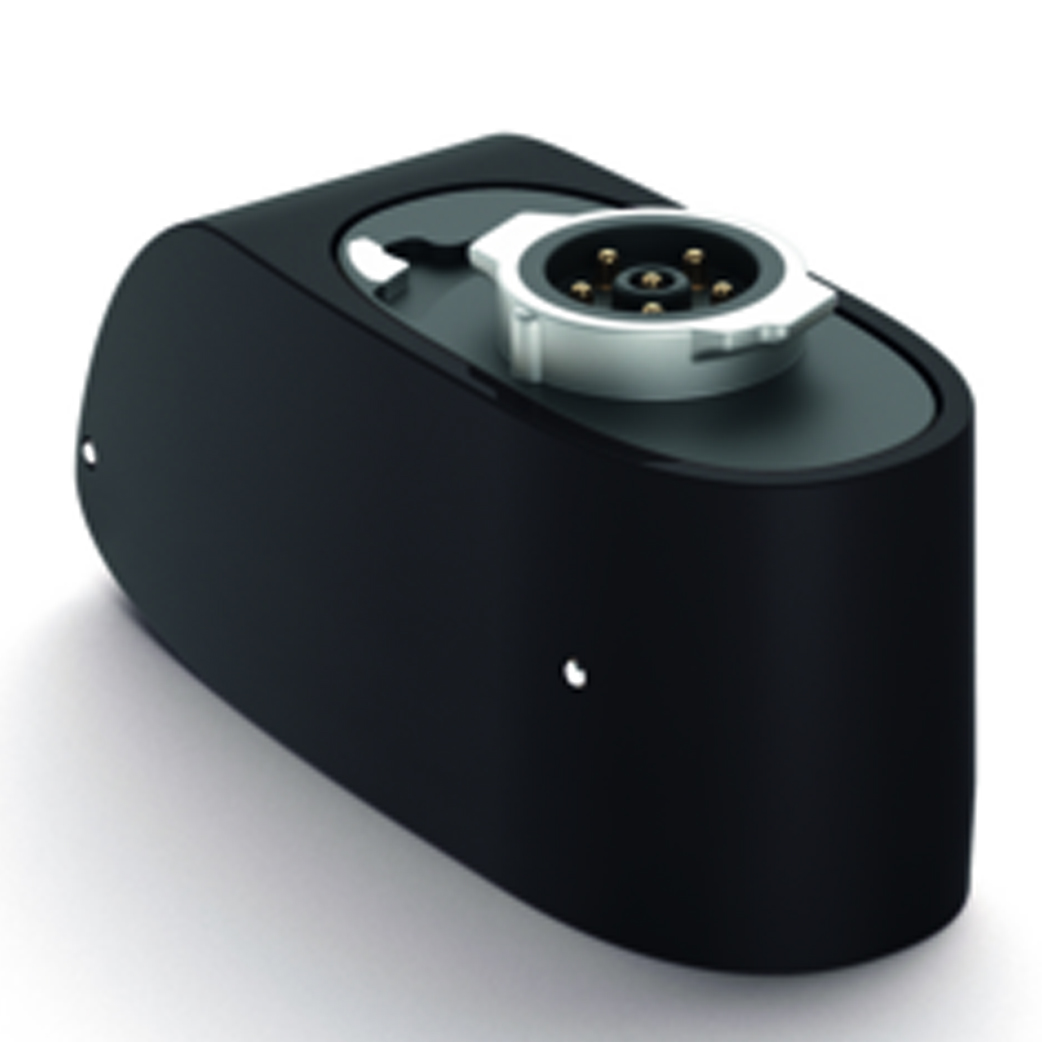

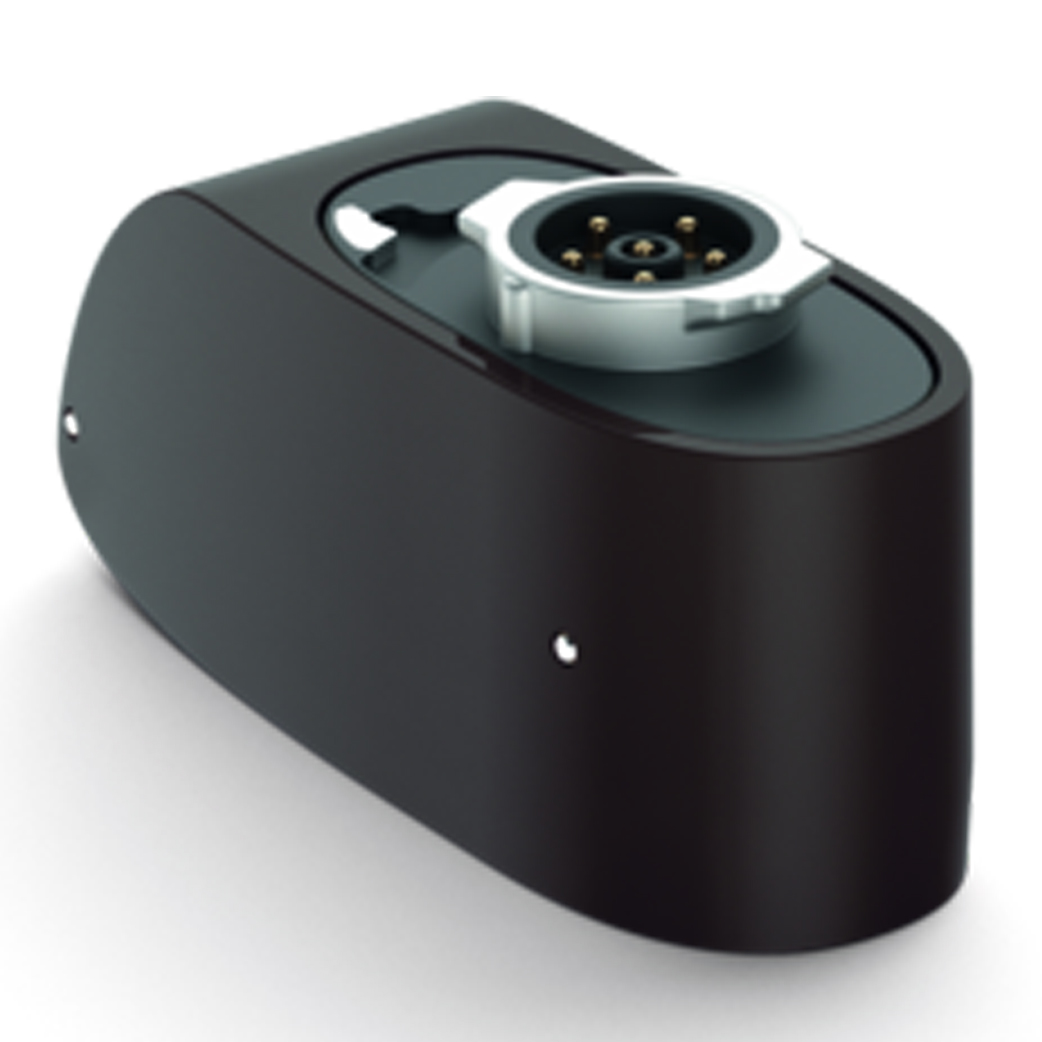

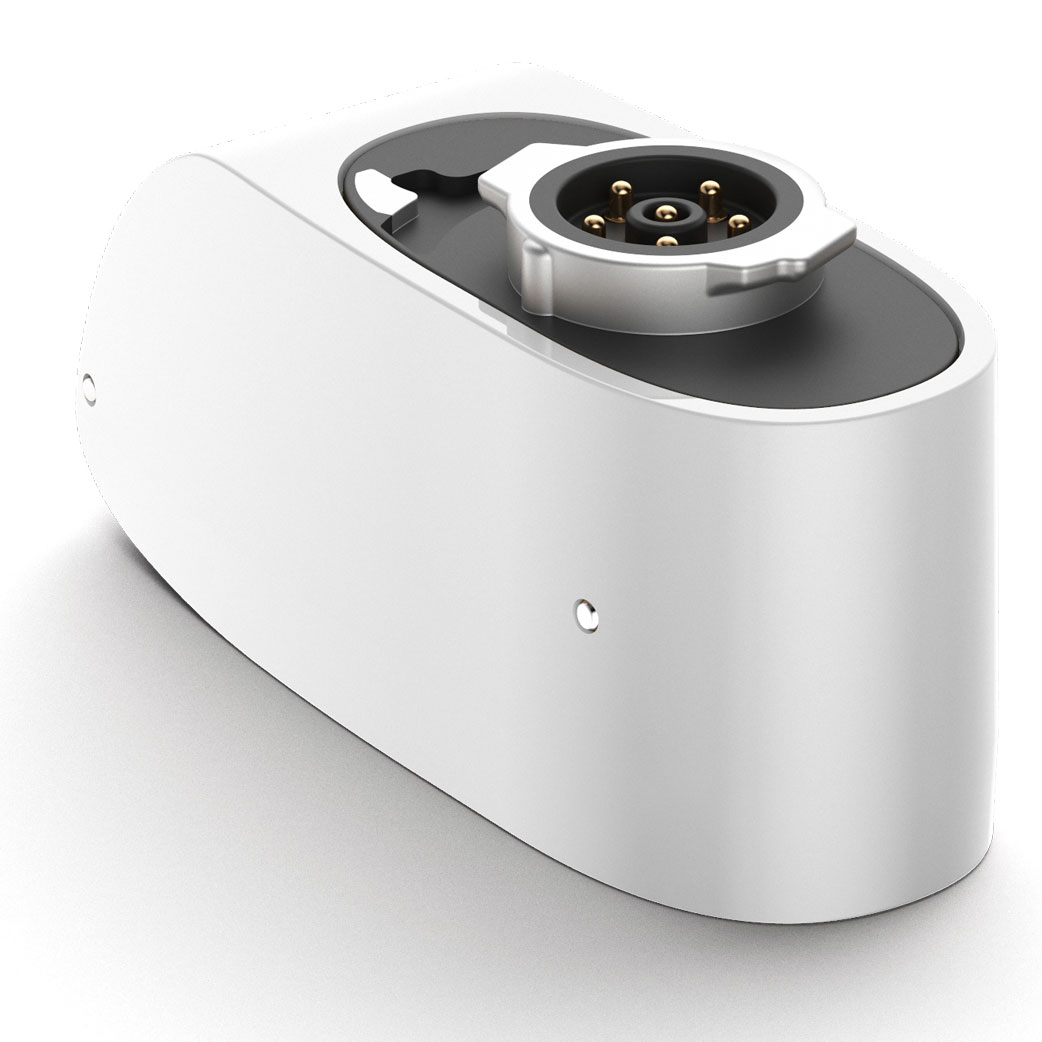

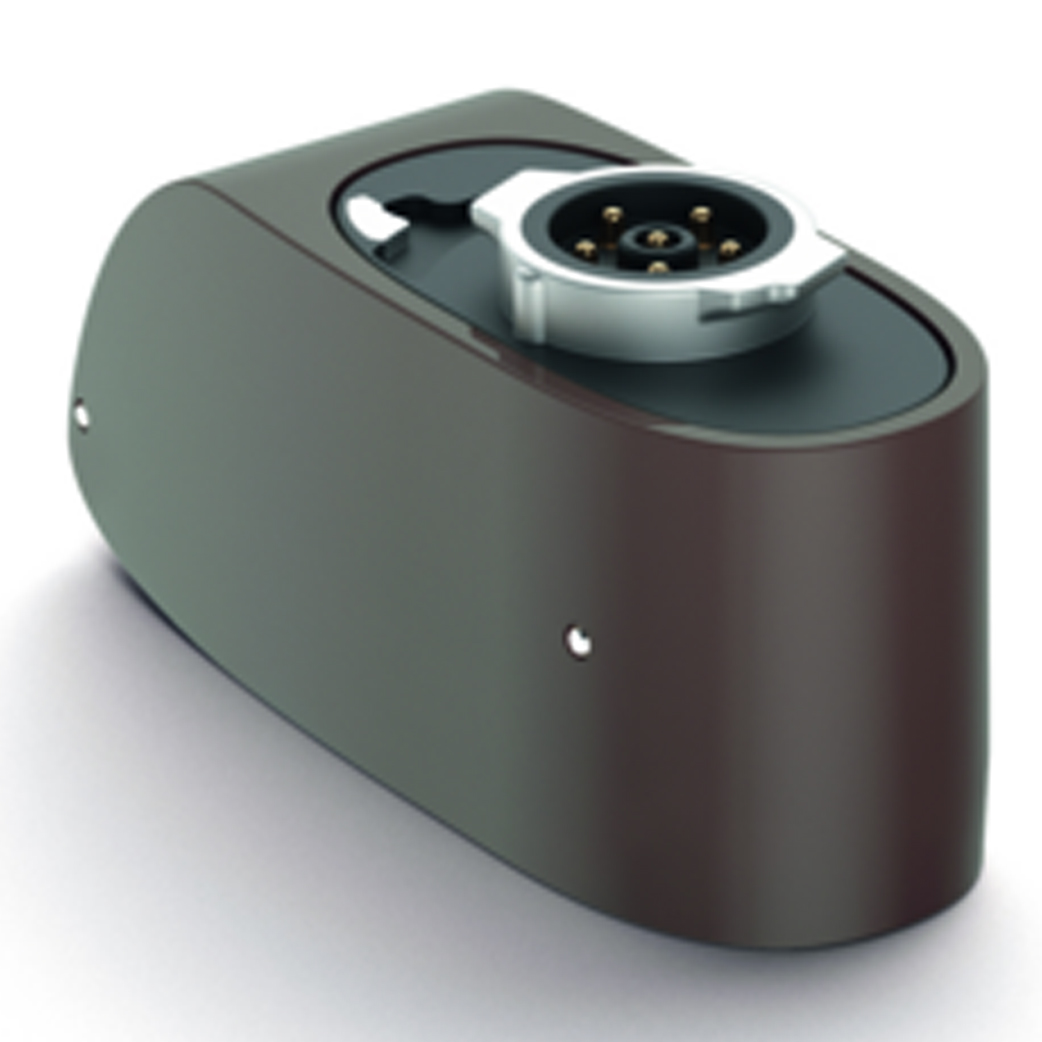

The Roger 20 is a dedicated, self-contained, micro type 02 roger receiver. It is designed especially for use with Nucleus 7 CP1000 and Nucleus 8 cochlear implant audio processors and allow use with Phonak Roger transmitters such as a Roger Pen or Roger Touchscreen Microphone transmitter.

The Roger 20 type 02 receivers are for use with any Roger transmitter i.e. Roger Touchscreen Mic, Roger Pen and Roger Clip-On Mic transmitters.

Note: there is no type 03 version of the Roger 20

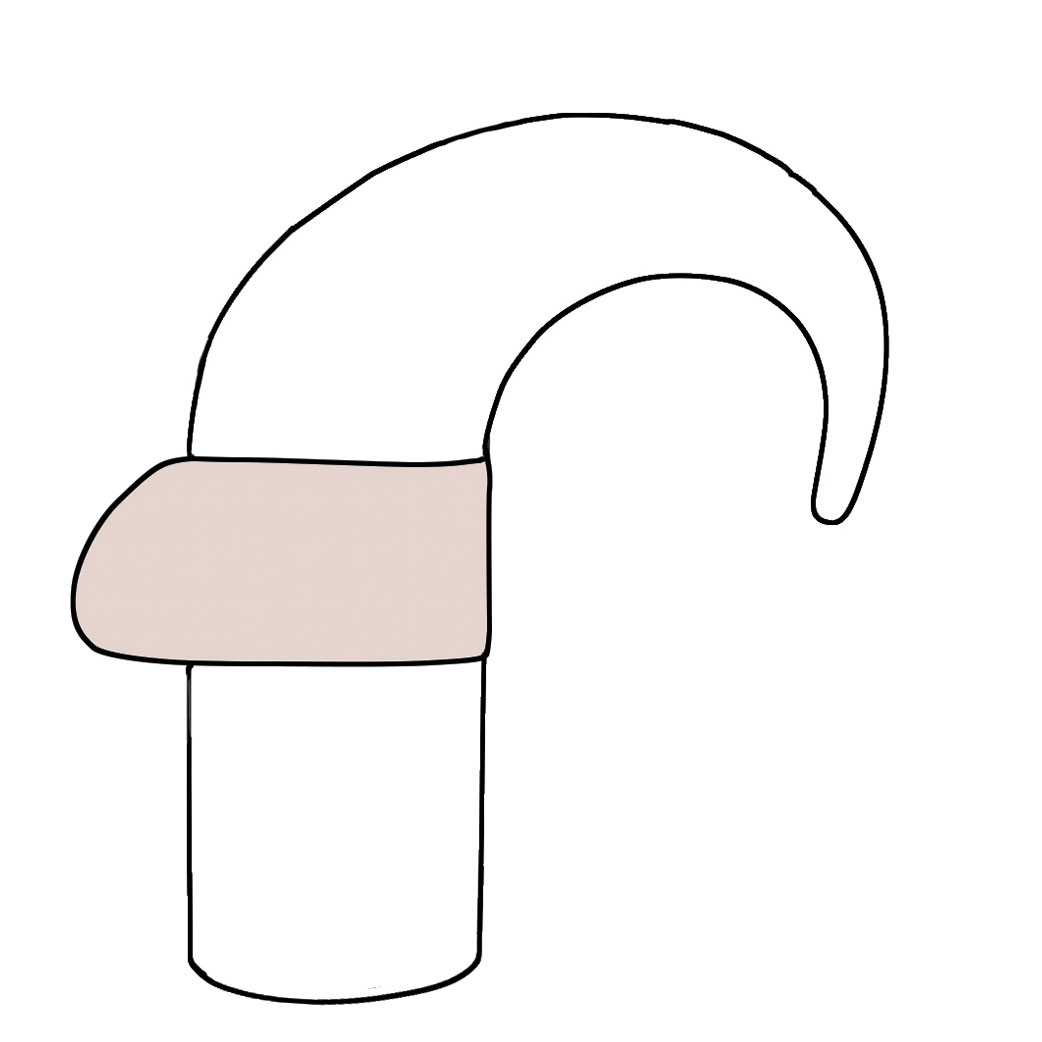

The Roger 20 is easy to fit with no user adjustments - it fits between the processor and the battery pack.

N.B. CI processor not included!

There is minimal setting up and, with no connecting wires, it has high visual appeal it is the cosmetics and small size which appeals to people.

Please note that Roger 20 receivers are not compatible with any generation of SmartLink, ZoomLink, EasyLink or non-premium inspiro transmitters.

Features:

• very small in size and weight
• Roger digital wireless technology
• Available in 5 colours to match the processor body.
• Supplied with fitting tool

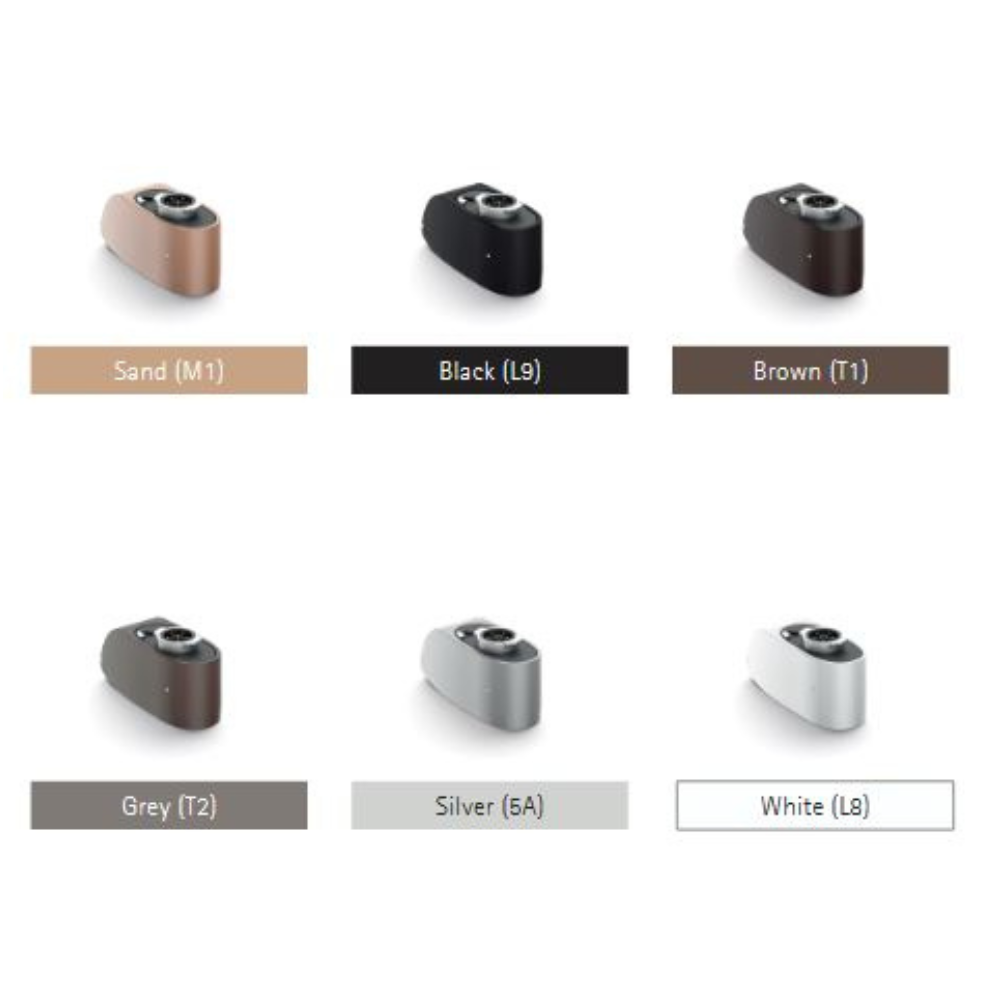

Manufacturer's part number: 056-3008-L8 White (L8), 056-3008-L9 Black (L9), 056-3008-M1 Sand (M1), 056-3008-T1 Brown (T1), 056-3008-T2 Smoke (T2) and 056-3008-5A Silver (5A)

2 year warranty as standard.

Length: 4.9 mm / 0.98 inch
Width: 9.3 mm / 0.366 inch
Height: 12.2 mm / 0.48 inch
Weight: 2.55 g / 0.09 oz


Roger 20 integrated Receiver Datasheet

Phonak Roger in Education

Phonak Roger with Hearing Aids

Roger Quick Facts

International warranty for Phonak equipment purchased for use outside of the UK.

Phonak offers a one-year limited international warranty, valid as of the date of purchase. This limited warranty covers manufacturing and material defects. The warranty only comes into force if proof of purchase is shown.

For customers using Phonak equipment outside the UK, in the unlikely event that your equipment requires repair it may be returned directly to your local Phonak service centre
