The Honeywell Series 5 wireless plug-in doorbell will never need batteries. It has a halo light with 6 selectable colours which will alert you to the presence of a visitor when the doorbell can't be heard.

Features:

• Loud volume (up to 84dB)
• Volume control
• Number of chime sounds: 6
• Bell push confidence light: yes
• Visual alert: LED strobe & Halo light (7 selectable colours)
• Sleep mode function
• Range: 150m (Portable Doorbell) 200m (Push Button)
• Mains powered - no batteries required
• Can be connected to up to 4 bell pushes

In the opinion of our evaluation panel, this doorbell has a good level of volume and a nice range of 6 chime sounds. The design is modern and the halo light is particularly nice. A plug-in chime is great as there are no batteries to worry about and as it is wall mounted, you don’t need to have somewhere to put it! The small size makes the Series 5 very unobtrusive.

Never miss a visitor or delivery
Place your plug-in doorbell anywhere in your home, with Honeywell ActivLink™ technology providing a reliable wireless range of up to 150m, while the maximum volume of 84dB can be heard up to 80m away.

Visual Alerts

The innovative Halo Light and LED Strobe provide discreet but effective visual alerts which complement your chosen melody in loud environments. This is also a great way to alert you when the doorbell cannot be heard. Nightlight mode can also provide a soft comforting glow.

Peace of mind
Peace of mind for visitors, thanks to a LED confidence light on the push button, and peace of mind for you, thanks to the Secret Knock function which plays a different melody, so you know if it's a family member or friend at the door.

Disturbance Free
With adjustable volume and innovative Sleep/Mute mode, which mutes the doorbell indefinitely, or for a prescribed period of 3, 6, 9 or 12 hours, your family can relax free from disturbances during movie nights or nap times.

Compact size with rich sound
This doorbell benefits from digitally enhanced, crystal clear sound that carries well throughout the home and garden.

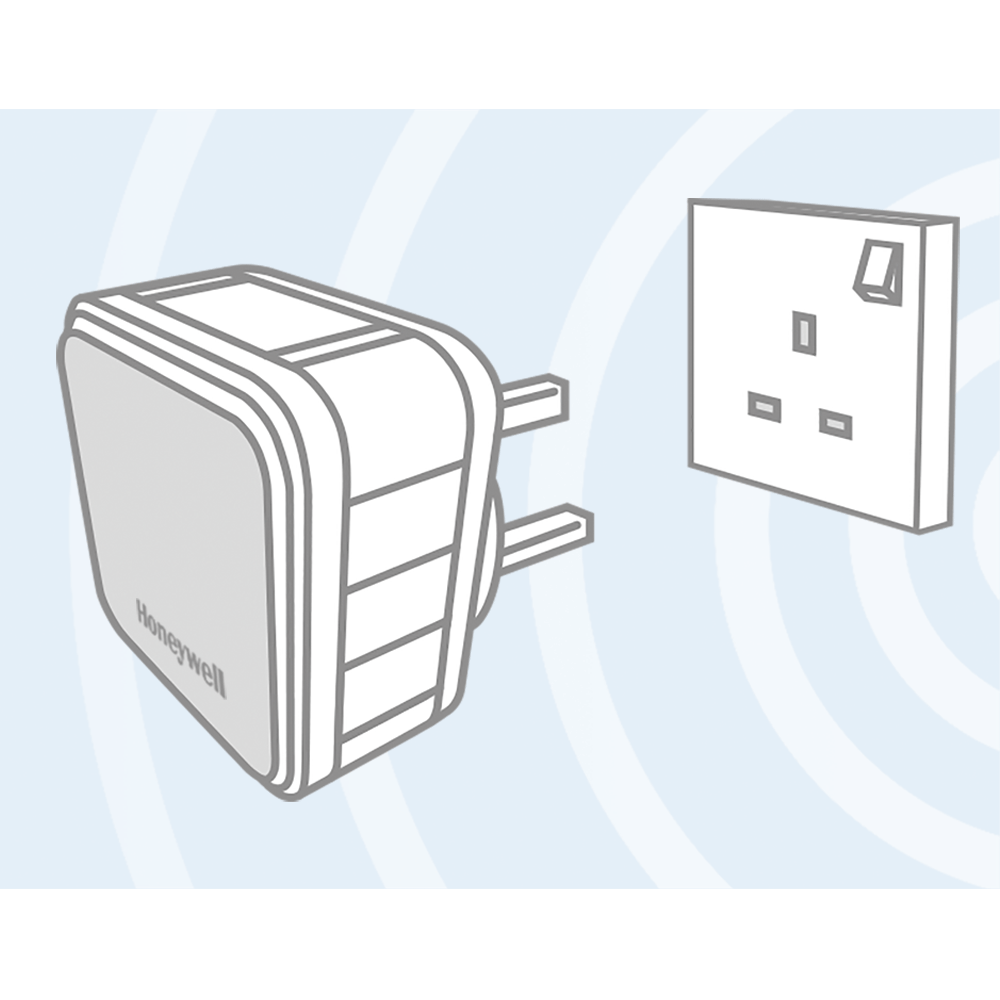

Easy to install
Pre-linked and ready to install straight out of the box. It is also possible to add additional bell pushes or chime units, creating a system that covers the whole house.

Pack contents: 1 x Wireless Plug-in Doorbell,1 x Wireless Push Button,1 x CR2032 (3V) Battery,1 x Quick Start Guide, 1 x Safety & Guarantee, 1 x Declaration of Conformity

Changing the Halo light colour:


• Press the doorbell push button to set the doorbell off
• Whilst your doorbell is flashing and making noise, press the Sun button    on the doorbell unit itself, one or more times, to choose a different colour halo.


Secret Knock Function:


• Press the doorbell push button 3 times in quick succession (The doorbell should sound the same melody as when you press the push button once)
• Now press the melody button    on your doorbell one or more times until you hear the melody you want for the 'Secret Knock'. Press the Sun button   to choose the desired halo colour for the 'Secret Knock'


• You can then tell people you know to press the doorbell 3 times in quick succession - this will then play the chosen melody, allowing you to identify that someone you know is at the door.

To link two units to one Push Button

• Press the 'Cog' button  on each doorbell - on halo light models you will see an orange circling light
• Then press the Push Button you want to use for both
• If successfully linked, both doorbells will activate upon pressing the Push Button

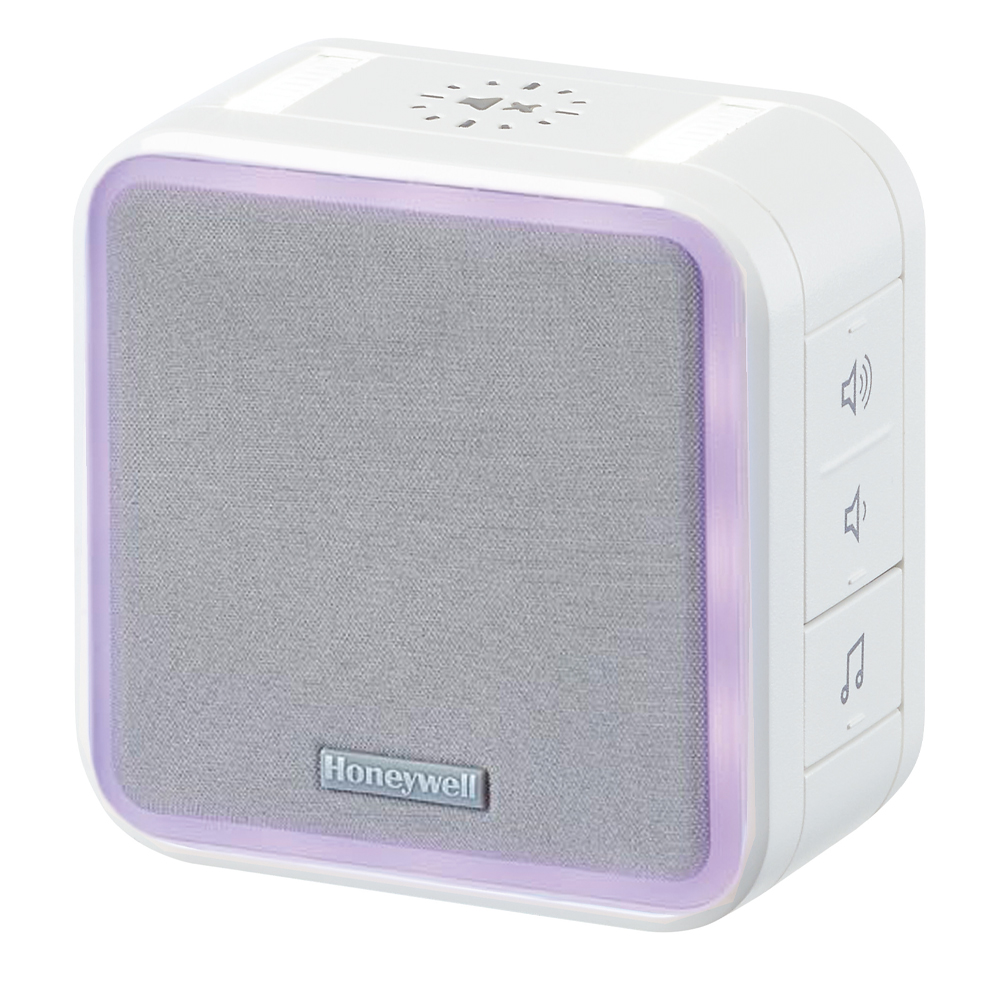

Wireless Plug-in Doorbell
Colour: White
Frequency: 868Mhz
Wireless Range (m)*: 150
Range Extender: No
Audible Range (Volume): 80m (84dB)
Melodies: 6
Sound: Volume Control / Internal Siren / Sleep Mode and Mute
Visual Alerts: 7 Colour Halo / LED Strobe
Dimensions (mm) / Weight (g): 70 (h) x 70 (w) x 66 (d) / 140 (g)
Power Specification: 100-240V 50-60Hz 300mA
USB Charging: No

Wireless Push Button
Colour: White
Wall mounted option: Yes
Frequency: 868Mhz
Wireless Range (m)*: 200
Low Battery Indicator: Yes
Push Button Design: Portrait
Confidence Light: Yes
Battery Specification: 1 x CR2032 (3V)
Battery Life (Years): 2
IP Rating: IP55
Name Plate: No
Dimensions (mm) / Weight (g): 30 (h) x 70 (w) x 16 (d) / 23.5 (g)
Fixings: Brackets / Screws / Rawl Plugs

* Measured in open field conditions, walls, ceilings and metal structures will reduce the maximum range.

For FAQ's please visit: http://livewell.honeywell.com/en/support/doorbell-support/

Click here to view PDF Datasheet (White)

Click here to view PDF Datasheet (Grey)

Click here to view PDF Instructions

Click here to listen to the chime sound options for this door bell
